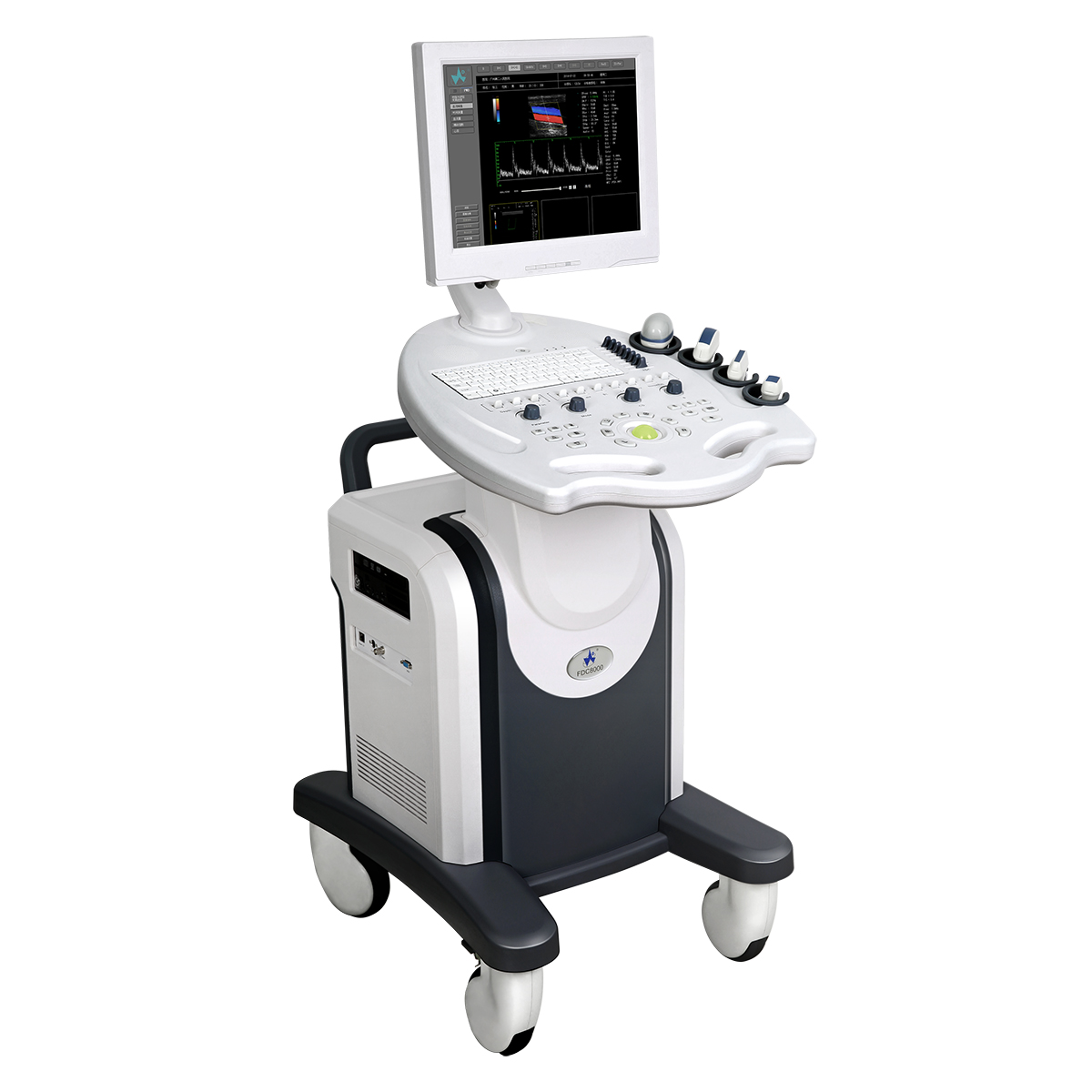

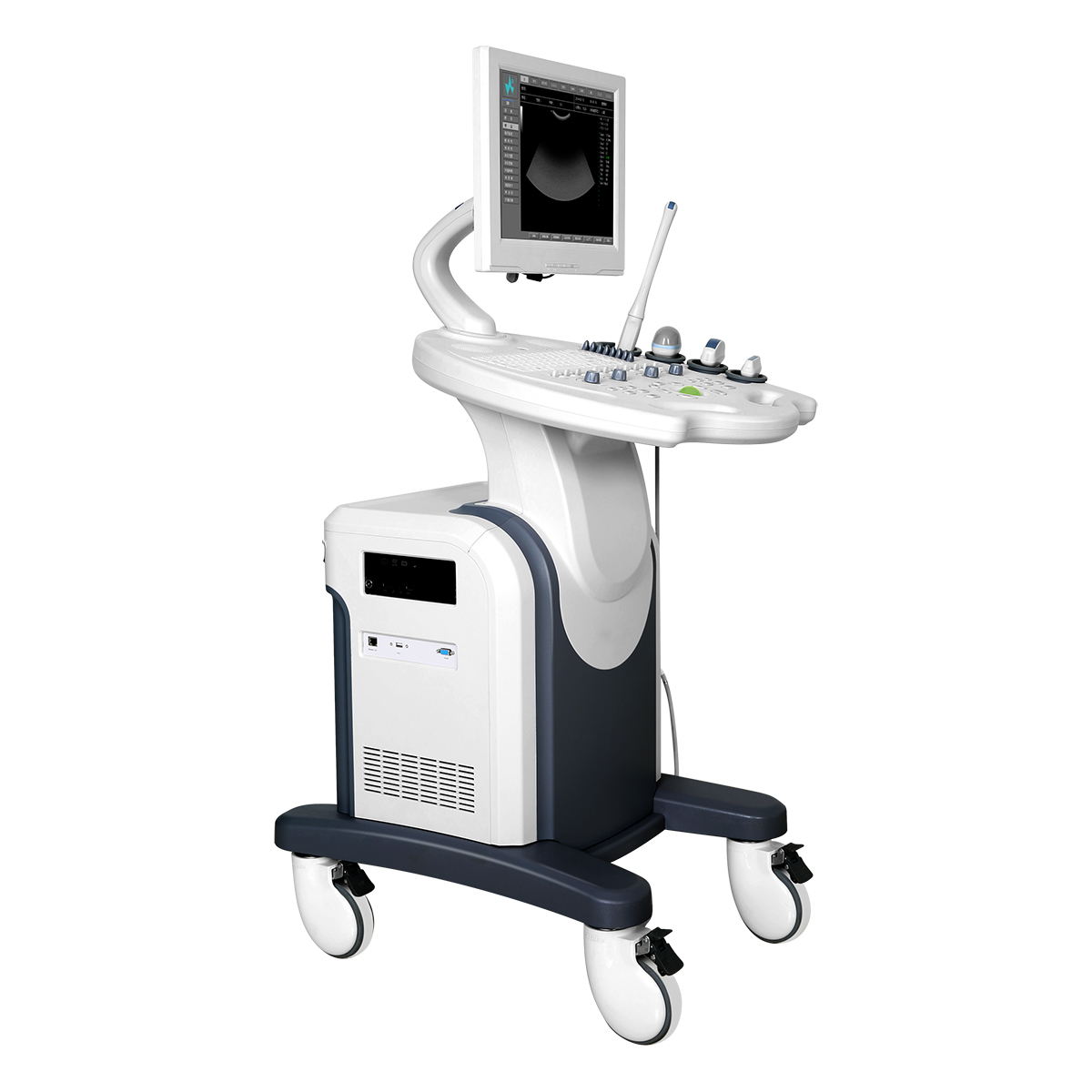

FDC8000

Full-digital Color Doppler Diagnostic System

Clinical application

For clinical diagnosis of abdomen, obstetrics, gynecology, cardiology, small organs, superficial blood vessels, musculoskeletal, ophthalmology, anesthesiology, urology, neurosurgery and other specialist clinics.

Product Order

Recommended Product
  • Product Introduction
  • Probe
  • Accessories
  • Downloads

FDC8000 characters world-advanced technology, modern ergonomic design, stellar image quality, high blood sensitivity and

extensive probe adaptation capability, it can meet varies needs of clinical diagnosis of abdomen, obstetrics, gynecology,

cardiology, small organs, superficial blood vessels, musculoskeletal, ophthalmology, anesthesiology, urology, neurosurgery

and other specialist clinics.



Leading ultrasound imaging technology

1. World-advanced ultrasound platform and architecture

An 8-core DSP processor and a front-end ultrasound chip with the latest generation of "digital demodulator" is adopted,

providing powerful computing capability, high integration, low power consumption as well as seamless upgrade which

supports elastography.


2. Sparse transmit & multi-beam parallel processing technology

Plane-wave transmitting as well as 16-beam parallel receiving and processing improve the frame rate of image and blood

sensitivity in B + C and B + C + D modes, achieving triplex display.


3. Pulse inversion harmonic imaging technology

Superior to traditional tissue harmonic imaging technology, pulse inversion harmonic imaging technology is applied to suppress

side lobes and improve contrast resolution of the tissue with counteracted fundamental and enhanced harmonic.


4. Synthetic aperture beam-forming technology

Break of restrictions traditional DAS beam-forming algorithm has on the number of physical channels generates excellent

images both in near field and in far field with smaller hardware and lower transmit power.


5. A continuous transmit focus at every pixel

The distance differences of transmitting sound waves and those of receiving sound waves are calculated simultaneously,

resulting to higher imaging precision and accuracy.

Diagnostic differences caused by differentiation of operators are lessened with no focus displayed and no need of manual

adjustments.


6. Speckle noise suppression technology

Removal of speckle noise significantly clears and smooths the 2D image.


7. Freehand 3D & 4D imaging technology

The detection rate of fetal malformation is raised substantially .




Features

1. 15-inch high-light medical LCD screen with adjustable angle;

2. 3 probe ports. Probe freely switching;hot-swapping available.

3. DICOM3.0, remote network assistance available

4. Built-in Integrated workstation can import typical medical records to realize automatic diagnosis.

5. Built-in PC Control platform.
