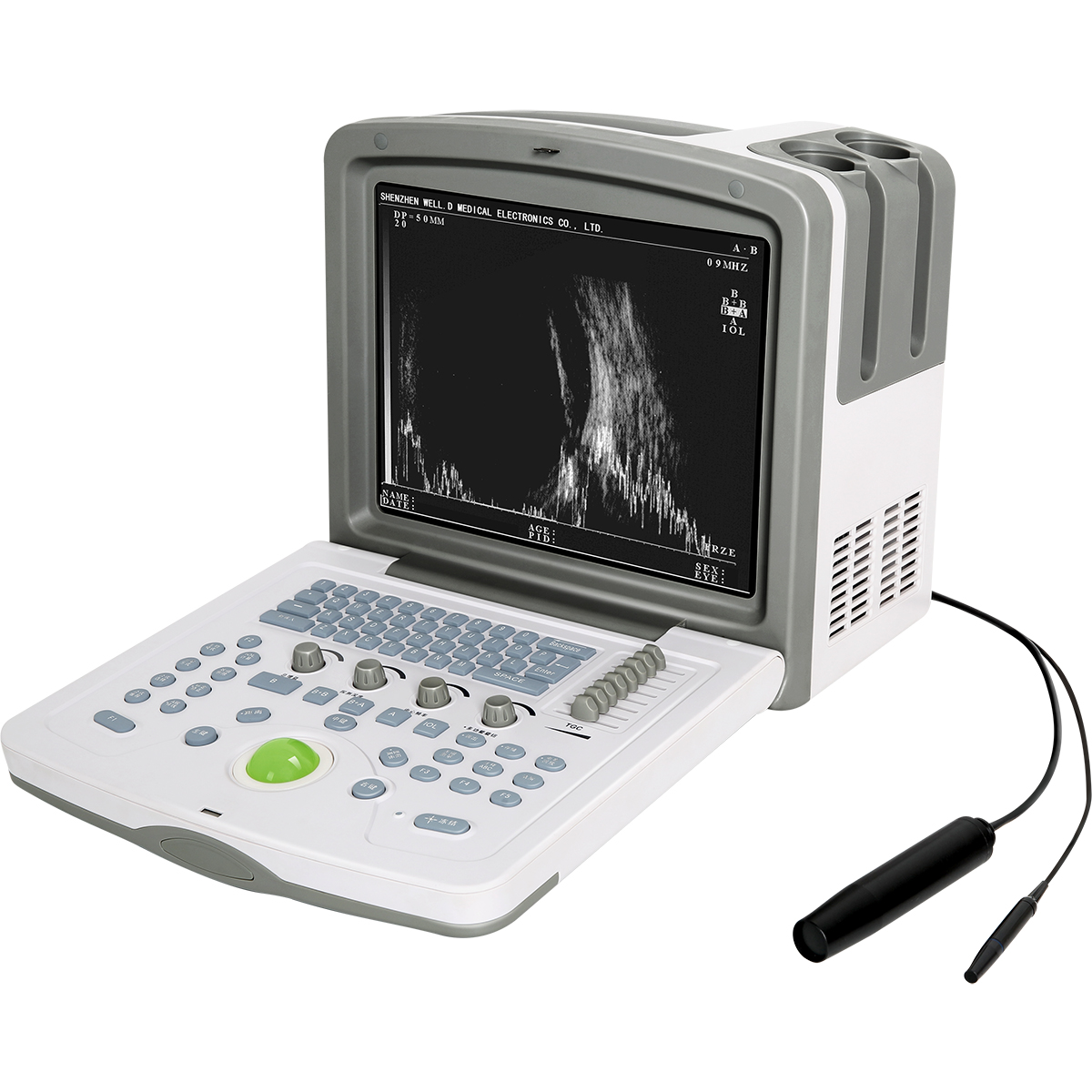

  • WED-5100Ophthalmology A/B Ultrasonic Diagnostic System

WED-5100

Ophthalmology A/B Ultrasonic Diagnostic System

Clinical application

For human ophthalmic ultrasound examination

Product Order

Recommended Product
  • Product Introduction
  • Probe
  • Accessories
  • Downloads

Features:

Digital imaging technology

12.1" high resolution color LCD display, image being delicate and clear

Powerful computer management system

Built-in high capacity hard disc, supporting U disc storage, laser printers

Supporting DICOM interface

Powerful, user-friendly design, easy to operate, compact appearance

Built-in ultrasound image and medical record management system

Double-image contrast observation

Offering five authoritative formula, of which any two groups can be displayed by contrast



Formula:

SRK-T, SRK- Ⅱ, BINKHOST- Ⅱ, HOLLADAY, HOFFER-Q, any two formulas able to calculate by contrast and display simultaneously



Performance:

Ultrasound operating frequency: 10MHz (8.0 ~ 11.0MHz adjustable)

Scan mode: motor driven sector scanning

Gain adjustment: 0 ~ 50dB

TGC: eight-section adjustment

Scanning angle: 53°

Display mode: B, B + B, B + A, A

Any area measurement



Main technical indicators:

B – ultrasound

Ultrasound operating frequency: 10MHz (8.0 ~ 11.0MHz adjustable)

Scan mode: motor driven sector scanning

Gain adjustment: 0 ~ 50dB

TGC: eight-section adjustment

Display mode: B, B + B, B + A, A

Display depth: 20mm ~ 65mm (20mm, 25mm, 30mm, ......, 55mm, 60mm, 65mm) ten-level adjustable

Scanning angle: 53 °

Resolution: Axial ≤ 0.2mm, Lateral ≤ 0.4mm

Geometric position accuracy: Longitudinal ≤ 5%, lateral ≤ 10%

Grayscale: 256

DSC capacity: 640 * 512 * 8 bit

Image pre-processing: frame averaging, line averaging

Image post-treatment: four groups of post-treatment curves (linear, logarithmic, exponential, S-type)

Dynamic playback: 25.6s/256, cyclic or single playback

Location: Multiple electronic vernier ranging, accuracy not less than ± 0.25mm

Area: Any area measurement, accuracy not less than ± 0.0625m

Real time clock display: year / month / day / hour / minute

Case information input: name, gender, age, medical record number

Full screen character comment

A - ultrasound

Ultrasound operating frequency: 10MHz

Biometric accuracy: ≤ ± 0.06mm

Display resolution: 0.01mm

Measuring range: axial length (AL): 15mm ~ 38mm

Anterior chamber depth (ACD): 2.6mm ~ 5.5mm

Lens thickness (LENS): 2.0mm ~ 5.9mm

Measurement: Immersion / contact

Measurement parameters: anterior chamber depth ACD, lens thickness LENS, vitreous length VITR, axial length AL, corneal thickness (infiltration mode)

Measuring modes: four automatic measurement modes (normal eye, aphakia, special eye, dense cataract) and manual measurement mode, special eye including a variety of IOL eyes and silicone oil eyes.

Formula: SRK-T, SRK- Ⅱ, BINKHOST- Ⅱ, HOLLADAY, HOFFER-Q, any two formulas able to calculate by contrast and display simultaneously

Automatic measurement of 9 groups of averages, accompanying wave

Saving four IOL constants
